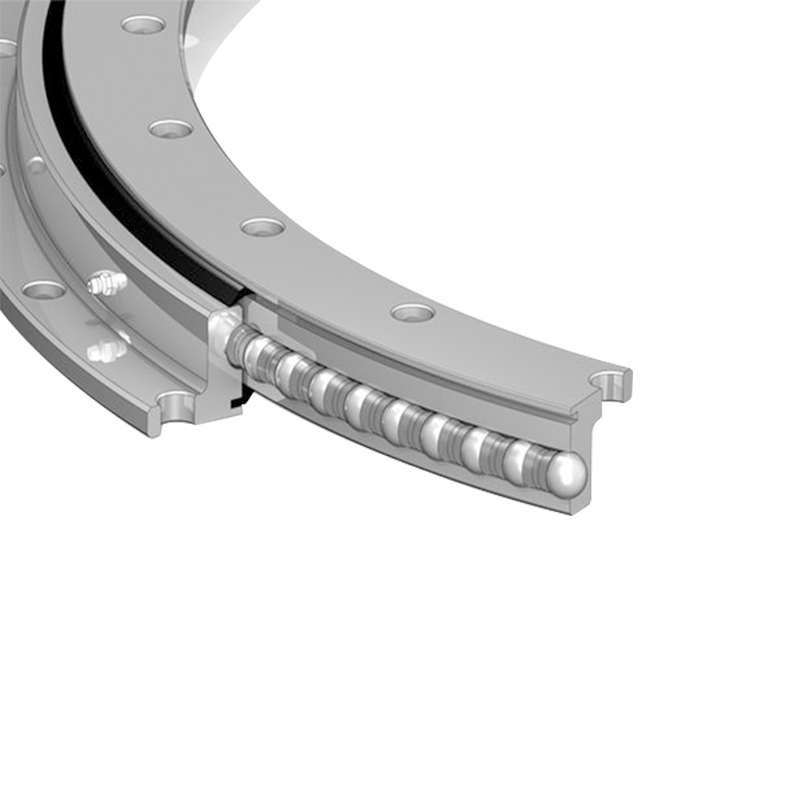

How to select and arrange the rolling elements (steel balls) of L-shaped single row ball slewing bearings?- Jiangsu Manchen Transmission Technology Co., Ltd

The selection and arrangement of rolling elements (steel balls) in L-type single-row ball slewing bearings are crucial steps in ensuring their performance. Here is a detailed explanation of this process in English:

Selection of Steel Balls

Material: Steel balls are typically made of high-strength, wear-resistant alloy steel to ensure durability and reliability during use. These alloy steels possess excellent mechanical properties and corrosion resistance, enabling them to maintain stable performance in various harsh environments.

Diameter: The diameter of the steel balls is determined based on the design requirements and load-bearing capacity of the slewing bearing. The choice of diameter needs to balance factors such as rolling efficiency, load-bearing capacity, and friction loss. Larger diameters can improve load-bearing capacity but may increase friction loss and operational noise, while smaller diameters can enhance rolling efficiency but may limit load-bearing capacity.

Precision: The manufacturing precision of steel balls has a significant impact on their performance in slewing bearings. High-precision steel balls ensure smooth operation, low noise, and reduced wear and failure.

Arrangement of Steel Balls

Quantity: The number of steel balls is determined based on the size and load-bearing capacity of the slewing bearing. Generally, larger slewing bearings require more steel balls to support the load, ensuring stability and durability.

Arrangement: Steel balls are uniformly arranged in the grooves between the inner and outer rings of the slewing bearing, held and separated by retainers or spacers. These retainers or spacers ensure that the steel balls maintain the correct position and spacing in the grooves, preventing collisions and wear.

Groove Design: The design of the inner and outer ring grooves has an important impact on the arrangement and operation of the steel balls. The shape, size, and surface roughness of the grooves need to match the diameter and precision of the steel balls to ensure smooth rolling. Additionally, groove design needs to consider factors such as load distribution, friction loss, and operational noise.

Precautions

When selecting and arranging steel balls, the following points should be noted:

Compatibility: The material, diameter, and precision of the steel balls need to be compatible with other components of the slewing bearing to ensure the stability and reliability of the entire system.

Operating Environment: The operating environment of the slewing bearing has a significant impact on its performance. When selecting and arranging steel balls, environmental factors such as temperature, humidity, and corrosion need to be considered to assess their impact on steel ball performance.

Regular Inspection and Maintenance: To ensure the long-term stable operation of the slewing bearing, regular inspections and maintenance of the steel balls and other components are required. This includes checking steel ball wear, replacing damaged components, cleaning, and lubrication.
