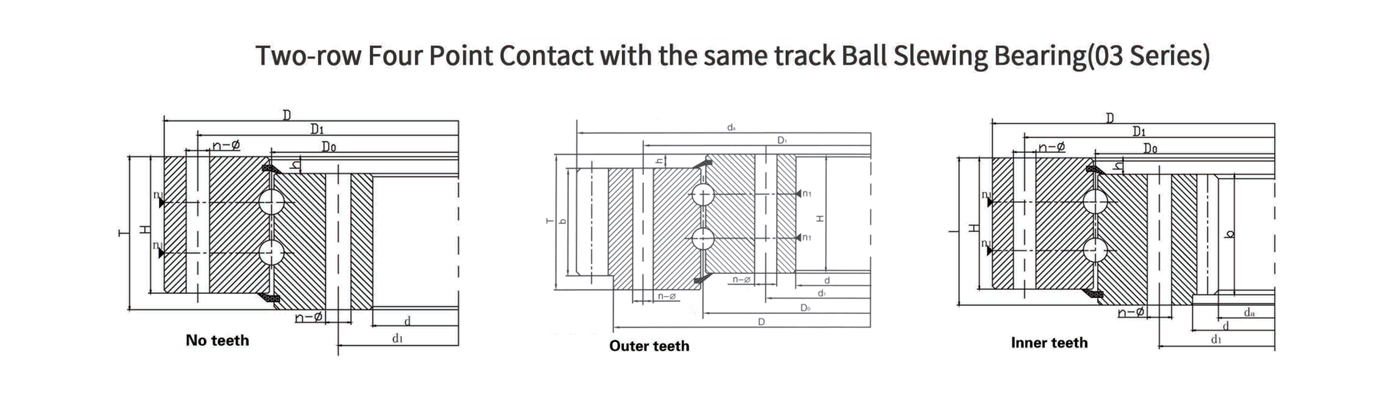

Double-Row Equal-Diameter Four-Point Contact Ball Slewing Bearing

Method for double-row equal-diameter four-point contact ball slewing bearing to bear axial and radial loads

Double-row equal-diameter four-point contact ball slewing bearings are designed to handle both axial and radial loads effectively. Here’s an overview of how these bearings manage these loads:
Load Distribution and Design:Design Features:Four-Point Contact: Each ball in the bearing makes contact with the raceways at four points. This configuration allows the bearing to handle combined loads more effectively, as the contact points distribute the forces across the bearing surface.Equal-Diameter Balls: The use of equal-diameter balls ensures uniform load distribution, reducing the risk of localized stress and improving overall load handling capabilities.
Load Bearing Mechanisms:Radial Loads: The radial load is supported by the contact points between the balls and the raceways. The design of the bearing allows the balls to support these loads evenly across the bearing circumference, minimizing stress concentration.Axial Loads: The four-point contact design also allows the bearing to support axial loads in both directions. The balls make contact with the raceways at an angle, enabling them to carry axial forces effectively. The equal-diameter balls help in evenly distributing these axial forces across the bearing.
Operational Mechanisms:Radial Load Handling:Contact Angle: The balls are arranged at an angle to the raceways, which allows them to bear radial loads. The contact angle is typically optimized to ensure that the radial load is distributed evenly across the bearing surface.Ball and Raceway Interaction: As the bearing rotates, the balls roll along the raceways, which helps in distributing the radial load across multiple contact points. This rolling motion reduces friction and wear.
Axial Load Handling:Four-Point Contact Design: The design of the four-point contact allows the bearing to handle axial loads effectively by creating multiple contact points that spread the load. This design enables the bearing to handle significant axial forces without excessive deformation or wear.Load Sharing: The equal-diameter balls in the bearing help in sharing the axial load uniformly across the entire bearing. This load-sharing capability enhances the bearing's stability and reduces the risk of localized stress.
Advantages of the Double-Row Design:Increased Load Capacity: The double-row design provides a larger contact area compared to single-row bearings, which increases the overall load capacity. This makes the bearing suitable for applications with high axial and radial load requirements.Improved Stability: The double-row configuration enhances the bearing's stability by distributing the loads more evenly. This stability helps in reducing vibrations and improving the overall performance of the bearing.Reduced Deformation: The even distribution of loads helps in minimizing deformation and wear, which extends the service life of the bearing.
Application Considerations:Selection Criteria:Load Requirements: When selecting a double-row equal-diameter four-point contact ball slewing bearing, it is important to consider the maximum axial and radial loads that the bearing will experience in its application.Operating Conditions: The bearing's performance can be affected by operating conditions such as temperature, speed, and environmental factors. Ensure that the bearing is designed to handle these conditions effectively.
Installation and Maintenance:Proper Installation: Correct installation is crucial for optimal load distribution and bearing performance. Ensure that the bearing is aligned properly and that the mounting surfaces are clean and free from debris.Regular Maintenance: Regular inspection and maintenance are essential to ensure that the bearing continues to perform effectively. This includes checking for signs of wear, ensuring proper lubrication, and addressing any issues promptly.
The double-row equal-diameter four-point contact ball slewing bearing is designed to handle both axial and radial loads through its unique design features and operational mechanisms. By utilizing four-point contact and equal-diameter balls, the bearing achieves effective load distribution, increased load capacity, and improved stability. Proper selection, installation, and maintenance are key to ensuring optimal performance and longevity of the bearing in various applications.

Warranty and support services provided by double row equal diameter four point contact ball slewing bearings

Warranty and support services for double-row equal-diameter four-point contact ball slewing bearings are crucial for ensuring the bearings perform reliably throughout their service life. These services typically include various aspects related to product quality assurance, customer support, and maintenance. Here's an overview of what to expect:
Warranty Coverage:Typical Warranty Terms:Duration: Warranties for double-row equal-diameter four-point contact ball slewing bearings usually range from 1 to 3 years, depending on the manufacturer and specific product.Scope of Coverage: Warranties generally cover defects in materials and workmanship. This includes issues such as manufacturing defects, improper heat treatment, or material failures.Exclusions: Common exclusions may include damage caused by improper installation, misuse, neglect, lack of maintenance, or external factors such as environmental conditions or accidental impacts.
Claim Process:Documentation: To claim a warranty, customers typically need to provide proof of purchase, detailed information about the defect, and potentially photographs or samples of the defective bearing.Inspection: The manufacturer may require the bearing to be inspected or returned for analysis to determine the cause of the failure and validate the warranty claim.Resolution: Depending on the findings, the manufacturer may offer repair, replacement, or refund based on the warranty terms.
Technical Support:Pre-Sales Support:Product Selection: Assistance with selecting the appropriate bearing model based on application requirements, load conditions, and operational environment.Technical Specifications: Providing detailed technical information and specifications to help customers make informed decisions.Post-Sales Support:Installation Guidance: Providing guidance or resources for proper installation and alignment of the bearings to ensure optimal performance and longevity.
Troubleshooting: Offering support for diagnosing and resolving issues related to bearing performance, including abnormal noises, excessive wear, or operational problems.Maintenance Advice: Offering recommendations on maintenance practices, lubrication schedules, and inspection routines to prolong bearing life.
Customer Service:Response Time:Inquiries and Support Requests: Prompt response to customer inquiries and support requests, often within a specified timeframe (e.g., 24-48 hours).Service Channels:Communication: Support may be provided through various channels, including phone, email, or online chat.
On-Site Support: In some cases, on-site support or field service may be available, especially for complex issues or large-scale installations.
Training and Resources:Educational Resources:Documentation: Providing detailed product manuals, installation guides, and maintenance instructions.Training Programs: Offering training sessions or workshops for customers and distributors on proper bearing installation, maintenance, and troubleshooting.Online Resources:Websites and Portals: Access to online resources such as technical articles, FAQs, and video tutorials to assist with common issues and best practices.
Replacement and Repair Services:Replacement:Replacement Policy: If a bearing is found to be defective under warranty, the manufacturer may provide a replacement bearing at no additional cost.Lead Times: Information on lead times for replacement bearings and the process for ordering them.Repair:Repair Services: Some manufacturers offer repair services for bearings that are not covered under warranty but can be refurbished or reconditioned.Cost Estimates: Providing cost estimates for repair services and turnaround times.
Quality Assurance:Quality Control:Inspection Procedures: Information on the quality control measures used during manufacturing to ensure that bearings meet specified standards.Certifications: Providing details on relevant industry certifications or standards that the bearings comply with.
Warranty and support services for double-row equal-diameter four-point contact ball slewing bearings are designed to ensure customer satisfaction and product reliability. They typically include coverage for defects, technical support, installation guidance, maintenance advice, and access to educational resources. Understanding these services helps customers make informed decisions and ensures they receive the necessary support throughout the bearing's service life.
