Slewing Ring Bearings: The Backbone of Heavy-Duty Rotational Machinery

Slewing ring bearings, also known as slewing bearings or turntable bearings, are critical components in heavy machinery and equipment that require rotational movement under substantial loads. These specialized bearings enable smooth, controlled rotation while supporting axial, radial, and moment loads simultaneously. From cranes and wind turbines to medical imaging devices, slewing ring bearings are indispensable in industries that demand precision, durability, and reliability. This article delves into the design, functionality, applications, and advancements of slewing ring bearings, highlighting their pivotal role in modern engineering.

What Are Slewing Ring Bearings?

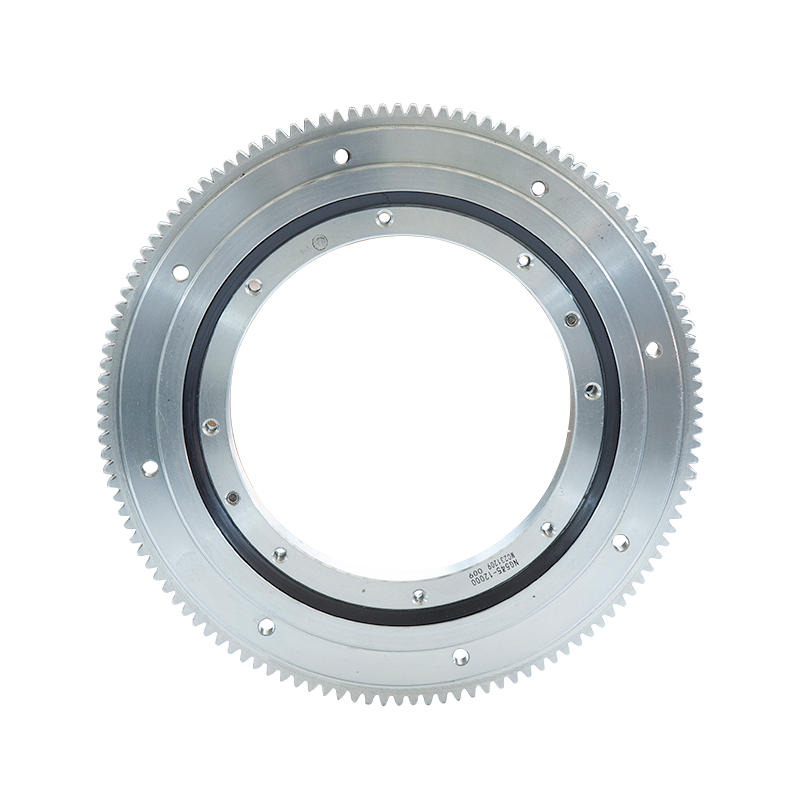

Slewing ring bearings are large-diameter rolling-element bearings designed to handle complex load combinations. Unlike traditional bearings, they are engineered to support not only radial and axial loads but also tilting moments, making them ideal for rotational applications. Their unique structure typically includes:

Inner and Outer Rings: The stationary and rotating components that house the rolling elements.

Rolling Elements: Balls or rollers that reduce friction and enable smooth rotation.

Raceways: Precision-machined grooves that guide the rolling elements.

Gear Teeth (Optional): Integrated into the inner or outer ring for direct drive applications.

These bearings are available in various configurations, including single-row, double-row, and cross-roller designs, each tailored to specific load and motion requirements.

Applications Across Industries
Slewing ring bearings are versatile components used in a wide range of industries:

Construction and Heavy Machinery: Excavators, cranes, and concrete pumps rely on slewing rings for 360-degree rotation and load stability.

Wind Energy: Wind turbine pitch and yaw systems use slewing bearings to adjust blade angles and align turbines with wind direction.

Medical Equipment: Advanced imaging devices like CT scanners and MRI machines utilize precision slewing rings for smooth rotational movement.

Robotics and Automation: Industrial robots and automated assembly lines depend on compact slewing bearings for precise motion control.

Aerospace and Defense: Radar systems, missile launchers, and satellite tracking equipment use high-performance slewing rings for accurate positioning.

Key Design Features and Innovations
Modern slewing ring bearings incorporate advanced features to enhance performance and longevity:

Material Advancements: High-strength alloy steels and surface treatments like induction hardening improve wear resistance and fatigue life.

Sealing Systems: Multi-layered seals protect against contaminants and retain lubrication, extending service intervals.

Integrated Sensors: Smart bearings with embedded sensors monitor load, temperature, and vibration, enabling predictive maintenance.

Lightweight Designs: Aluminum alloys and composite materials reduce weight without compromising strength, ideal for aerospace and robotics.

Customization: Manufacturers offer tailored solutions, including non-standard sizes, specialized coatings, and unique gear configurations.

Challenges and Solutions
Load Capacity and Fatigue: Heavy loads and cyclic stresses can lead to premature failure. Solution: Advanced finite element analysis (FEA) optimizes bearing geometry and material selection.

Corrosion and Contamination: Harsh environments like offshore wind farms or construction sites pose risks. Solution: Stainless steel bearings and robust sealing systems enhance durability.

Precision Requirements: High-accuracy applications like medical imaging demand ultra-precise bearings. Solution: Precision grinding and advanced quality control ensure tight tolerances.

Sustainability and Future Trends
As industries prioritize sustainability, slewing ring bearing manufacturers are adopting eco-friendly practices:

Recyclable Materials: Using recyclable steels and coatings to reduce environmental impact.

Energy-Efficient Designs: Low-friction bearings minimize energy consumption in rotating machinery.

Digitalization: IoT-enabled bearings provide real-time data for optimized performance and reduced downtime.

Future trends include:

Additive Manufacturing: 3D-printed bearings with complex geometries for customized applications.

Hybrid Bearings: Combining ceramic rolling elements with steel rings for enhanced performance in extreme conditions.

Self-Lubricating Systems: Bearings with built-in lubrication reservoirs for maintenance-free operation.
